Cisco 300-115 dumps in one month, is it possible? “Implementing Cisco IP Switched Networks” is the name of Cisco 300-115 exam dumps which covers all the knowledge points of the real Cisco exam. Best Cisco video training for most reliable Cisco 300-115 dumps SWITCH exam download for The Cisco Learning Network. Pass4itsure Cisco 300-115 dumps exam questions answers are updated (456 Q&As) are verified by experts.
The associated certifications of 300-115 dumps is CCDP. Pass4itsure https://www.pass4itsure.com/300-115.html dumps Information Technical advancement is a speedily increasing area, and the skills managed by IT professionals’ decreases a comprehensive swath.
Exam Code: 300-115
Exam Name: Implementing Cisco IP Switched Networks
Q&As: 456
[2017-November-Version Pass4itsure 300-115 Dumps From Google Drive]: https://drive.google.com/open?id=0BwxjZr-ZDwwWLW41Sk5QSDdPTFU
[2017-November-Version Pass4itsure 200-155 Dumps From Google Drive]: https://drive.google.com/open?id=0BwxjZr-ZDwwWNHFtR0VqbXVEeUU
QUESTION 20
While working in the core network building, a technician accidently bumps the fiber connection between two core switches and damages one of the pairs of fiber. As designed, the link was placed into a non-forwarding state due to a fault with UDLD. After the damaged cable was replaced, the link did not recover. What solution allows the network switch to automatically recover from such an issue?
A. macros
B. errdisable autorecovery
C. IP Event Dampening
D. command aliases
E. Bidirectional Forwarding Detection
300-115 exam Correct Answer: B
Explanation
Explanation/Reference:
Explanation:
There are a number of events which can disable a link on a Catalyst switch, such as the detection of a loopback, UDLD failure, or a broadcast storm. By default, manual intervention by an administrator is necessary to restore the interface to working order; this can be done by issuing shutdown followed by no shutdown on the interface. The idea behind requiring administrative action is so that a human engineer can intercede, assess, and (ideally) correct the issue. However, some
configurations may be prone to accidental violations, and a steady recurrence of these can amount to a huge time sink for the administrative staff. This is where errdisable autorecovery can be of great assistance. We can configure the switch to automatically re-enable any error-disabled interfaces after a specified timeout period. This gives the offending issue a chance to be cleared by the user (for example, by removing an unapproved device) without the need for administrative intervention.
QUESTION 21
A network engineer deployed a switch that operates the LAN base feature set and decides to use the SDM VLAN template. The SDM template is causing the CPU of the switch to spike during peak working hours. What is the root cause of this issue?
A. The VLAN receives additional frames from neighboring switches.
B. The SDM VLAN template causes the MAC address-table to overflow.
C. The VLAN template disables routing in hardware.
D. The switch needs to be rebooted before the SDM template takes effect.
Correct Answer: C
Explanation
Explanation/Reference:
Explanation:
SDM Template Notes:
All templates are predefined. There is no way to edit template category individual values. The switch reload is required to use a new SDM template. The ACL merge algorithm, as opposed to the original access control entries (ACEs) configured by the user, generate the number of TCAM entries listed for security and QoS ACEs. The first eight lines (up to Security ACEs) represent approximate hardware boundaries set when a template is used. If the boundary is exceeded, all processing
overflow is sent to the CPU which can have a major impact on the performance of the switch. Choosing the VLAN template will actually disable routing (number of entry for unicast or multicast route is zero) in hardware.
QUESTION 22
An access switch has been configured with an EtherChannel port. After configuring SPAN to monitor this port, the network administrator notices that not all traffic is being replicated to the management server. What is a cause for this issue?
A. VLAN filters are required to ensure traffic mirrors effectively.
B. SPAN encapsulation replication must be enabled to capture EtherChannel destination traffic.
C. The port channel can be used as a SPAN source, but not a destination.
D. RSPAN must be used to capture EtherChannel bidirectional traffic.
300-115 dumps Correct Answer: C
Explanation
Explanation/Reference:
Explanation:
A source port or EtherChannel is a port or EtherChannel monitored for traffic analysis. You can configure both Layer 2 and Layer 3 ports and EtherChannels as SPAN sources. SPAN can monitor one or more source ports or EtherChannels in a single SPAN session. You can configure ports or EtherChannels in any VLAN as SPAN sources. Trunk ports or EtherChannels can be configured as sources and mixed with nontrunk sources. A port-channel interface (an EtherChannel) can be a SPAN source, but not a destination. Reference:
QUESTION 23

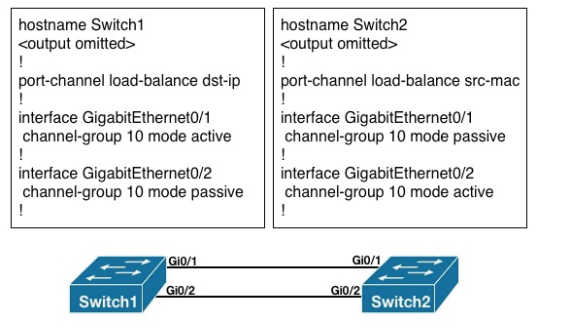

Refer to the exhibit.
What is the result of the configuration?
A. The EtherChannels would not form because the load-balancing method must match on the devices.
B. The EtherChannels would form and function properly even though the load-balancing and EtherChannel modes do not match.
C. The EtherChannels would form, but network loops would occur because the load-balancing methods do not match.
D. The EtherChannels would form and both devices would use the dst-ip load-balancing method because Switch1 is configured with EtherChannel mode active.
Correct Answer: B
Explanation
Explanation/Reference:
Explanation:
An etherchannel will form if one end is active and the other is passive. The table below sum- marizes the results for LACP channel establishment based on the configuration of each side of a link: LACP Channel Establishment S1 S2 Established?
On On Yes
Active/Passive Active Yes
On/Active/Passive Not Configured No
On Active No
Passive/On Passive No
Load balancing can only be configured globally. As a result, all channels (manually configured, PagP, or LACP) use the same load-balancing. This is true for the switch globally, although each switch involved in the etherchannel can have non matching parameters for load balancing.
QUESTION 24
A network engineer tries to configure storm control on an EtherChannel bundle. What is the result of the configuration?
A. The storm control settings will appear on the EtherChannel, but not on the associated physical ports.
B. The configuration will be rejected because storm control is not supported for EtherChannel.
C. The storm control configuration will be accepted, but will only be present on the physical interfaces.
D. The settings will be applied to the EtherChannel bundle and all associated physical interfaces.
300-115 pdf Correct Answer: D
Explanation
Explanation/Reference:
Explanation:
After you configure an EtherChannel, any configuration that you apply to the port-channel interface affects the EtherChannel; any configuration that you apply to the physical interfaces affects only the interface where you apply the configuration. Storm Control is an exception to this rule. For example, you cannot configure Storm Control on some of the members of an EtherChannel; Storm Control must be configured on all or none of the ports. If you configure Storm Control on only some of the ports, those ports will be dropped from the EtherChannel interface (put in suspended state). Therefore, you should configure Storm Control at the EtherChannel Interface level, and not at the physical interface level. Reference:
With so many Pass4itsure 300-115 dumps information out there and technology changing every day, getting https://www.pass4itsure.com/300-115.html dumps qualified is the best way to differentiate yourself from other job candidates and make sure your contemporary capabilities to choosing companies and managers. While certification doesn’t guarantee you a job, they often put a candidate’s career over the top or acquire you a fair pay over non-certified competitors.
